JVC KW-M780BT 6.8" Short Chassis Multimedia Receiver Apple CarPlay/Android Auto/iDatalink Maestro Ready

• GENERAL FEATURES: 6.8" Capacitive touchscreen display (like your phone), customizable display background, live wallpaper, and digital angle adjustment for better in-dash visibility, fits double-DIN dash openings, Variable Color Key illumination
• Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps and Waze are also supported
• Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. JVC multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze.

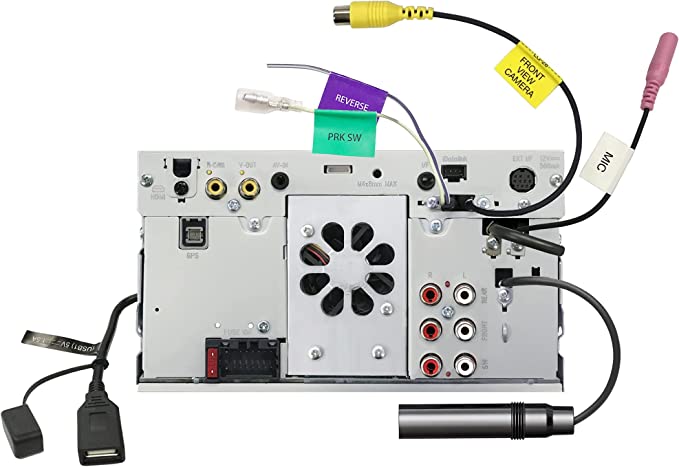

• EXPANDABILITY: Compatible with SiriusXM satellite radio tuner - INPUTS: rear USB input, rear A/V input (RCA, mini), two camera inputs – OUTPUTS: rear video output (RCA), 6-channel preamp outputs (4-volt front, rear, subwoofer), 3 Camera Input, Front Camer Interruption, Rear Cam Parking Guidelines
• AUDIO/VIDEO FEATURES: Plays USB memory devices, 13-band equalizer with digital time alignment, K2 technology improves the digital sound for all music sources, Sound Lift compensates for speakers that are low in the doors, subwoofer level, phase, and low-pass crossover controls, ---Does not play CDs---
• ADDITIONAL: Compatible with iDataLink Maestro module, wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display) - INSTALLATION SIZE (WxHxD): 7" x 3-15/16" x 2-15/16" (178 x 100 x 75 mm)

General Features:

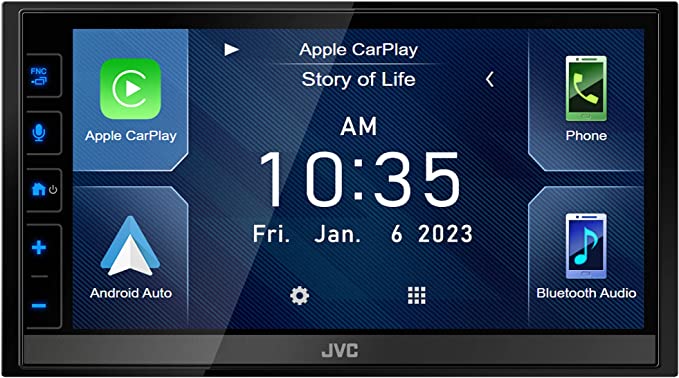

• 6.8" Capacitive Touch Panel Display
• Short Chassis 2-15/16in. Depth (75mm)
• GUI Gesture Touch Control (4 Directions / Circle)

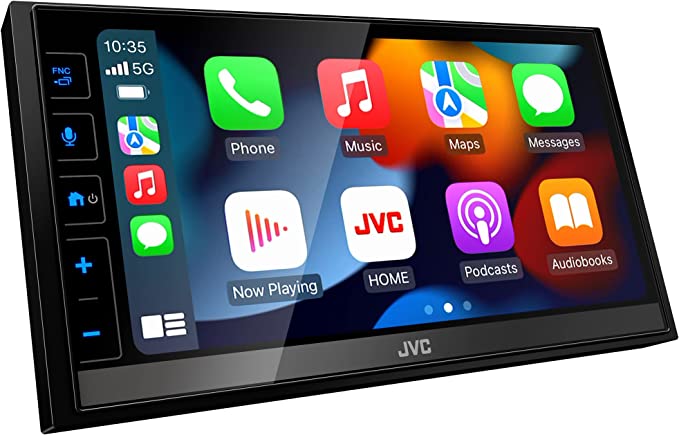

• Apple CarPlay® (via USB)

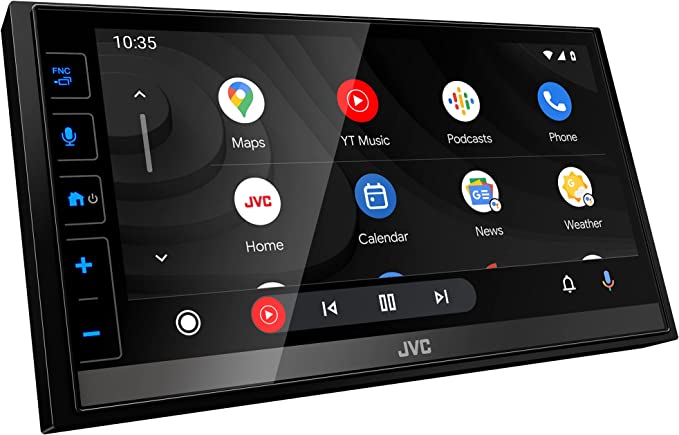

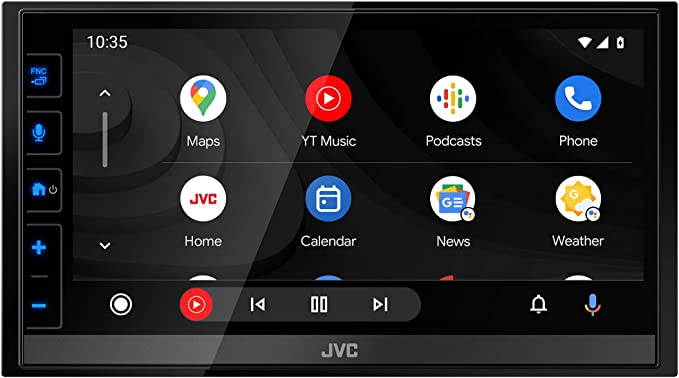

• Android Auto™ (via USB)
• USB Mirroring for Android™ with Touch Control (Requires Mirroring OA for JVC Android App)
• Rear HDMI Type-D Input
• High Speed USB 2.0 with1.5A Current Charging

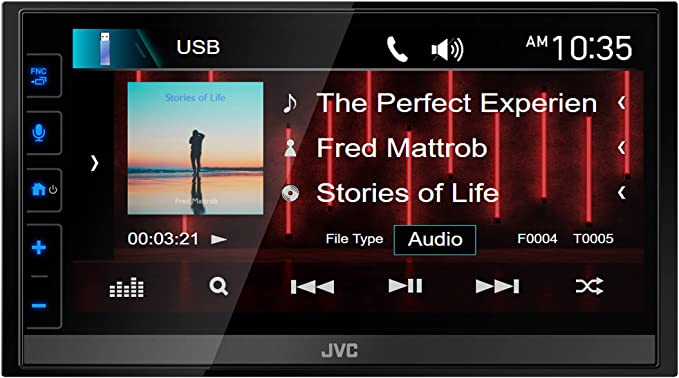

• Audio Decoder MP3 / WMA / AAC / WAV / FLAC
• Video Decoder MPEG1/2, MPEG4 / WMV / H.264 / MKV
• SiriusXM Ready
• iDatalink Maestro Ready
• Bluetooth V4.2 (HFP1.8, SPP, A2DP, AVRCP1.6.2, PBAP)
• iPhone® / Android™ Bluetooth Automatic Pairing
• 2 Phones Full-Time Connection
• Variable Color Key Illumination
• Digital Viewing Angle Adjustments (0 - 20°)
• Customizable Shortcut Keys
• Customizable GUI
• Customizable Wallpaper
• Multilingual Display (English, Spanish, French)
• MOS-FET 50W x 4 Power Output (22W RMS x 4)
• 4.0V Pre-Output Terminals (Front + Rear + Sub)
• 2-Way X'Over HPF/LPF or 3-Way X'Over HPF/BPF/LPF
• 13-Band Equalizer with Digital Time Alignment (DTA)
• Subwoofer Output with Level Control
• Mini Jack AV Input (Switchable Camera-IN or AV-IN)
• Rear View Camera Input x 1 (RCA)
• Front View Camera Input x 1 (RCA-Pigtail)
• Video Output (RCA)
• Steering Wheel Remote Ready
• Includes GPS Antenna
• Includes Trim Plate and Mounting Sleeve
• Optional: HDMI Cable Type-A to Type-D (KS-U70)
• Optional: Wireless Remote Control (RM-RK258)
